UG 400
Cylindrical grinder
Stock No.9938

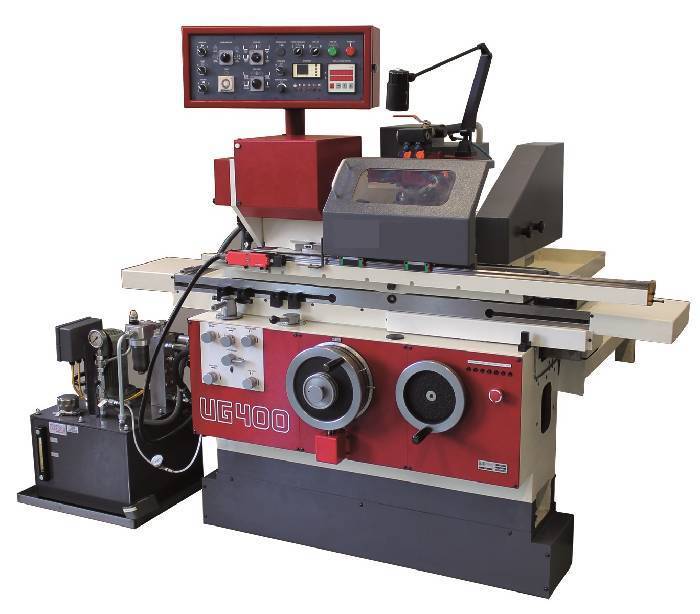

Cylindrical grinder - UG 400 - 70305
Detailed description
Cylindrical grinder by UG 400 second-hand and available at Greub. Our team provides expert advice and supports you throughout your project. Contact us for more information.
- Designation
- Cylindrical grinder
- Brand
- UG 400
- Stock number
- 70305
- State
- NEUF
Contact us directly to order this machine
Features
- Internal grinding spindle
- Centre height
- 100 mm
- Distance between centres:
- 400 mm
- Grinding wheel
- Dimension of grinding wheel:
- 350x50x127mm
- Diameter min.
- 280 mm
- Motor power
- 3.7 kW
- Grinding wheel speeds
- 1800-2000 t/min
- Total stroke
- 25 mm
- Table speeds
- 0.05-5 m/min
- Automatic forward feed
- 2 mm (minimum)
- Max.table angular displacement
- 30(towards to the wheel head) °
- Max.table angular displacement
- 3(away from the wheel head) °
- Grinding head
- Swivelling range
- 0-90 °
- Spindle speed
- 50-1000 t/min
- Taper size
- 4 CM
- Diam. collet chuck location
- 20 mm
- Motor power
- 0.75 kW
- Clamping chuck diameter
- 100 mm
- Range of weight
- max 30 kg
- Feeds
- Avances rapide
- 50
- Setting range of the rules
- 200 mm
- Tailstock
- Holding taper:
- 3 CM
- Machine's weight
- 2200 Kg
- Pitch range steplessly adjust.
- 0-0.040 mm
- Overall dimensions machine
- mm
- Grinding accuracy
- 0.0003 mm
- Length
- 3000 mm
- Width
- 1750 mm
- Height
- 1600 mm
Download
